Below is a sampling of the different configurations we build our Speed-Lifts to accommodate site layouts and needs

Pad Height Variations

-Speed-Lifts can rest on the ground or accommodate pad heights up to 38" above the truck approach.

Dock to Ground/Ground to Dock

-By turning our lifts around and putting the motor end against a dock, our custom loading dock lifts can be used to move products from ground level up to a dock or raised platform and vice versa.

Moving Products From Various Truck Heights Up To a Dock

-A hydraulic or manual winch can be added to open the ramp at any height needed. This allows our Speed-Lifts to load/unload products at any truck height between the ground and dock level.

Restricted Space

-Our side-off (SOP) configurations are ideal where end access is not feasible i.e. - when trucks have to back up parallel to a building.

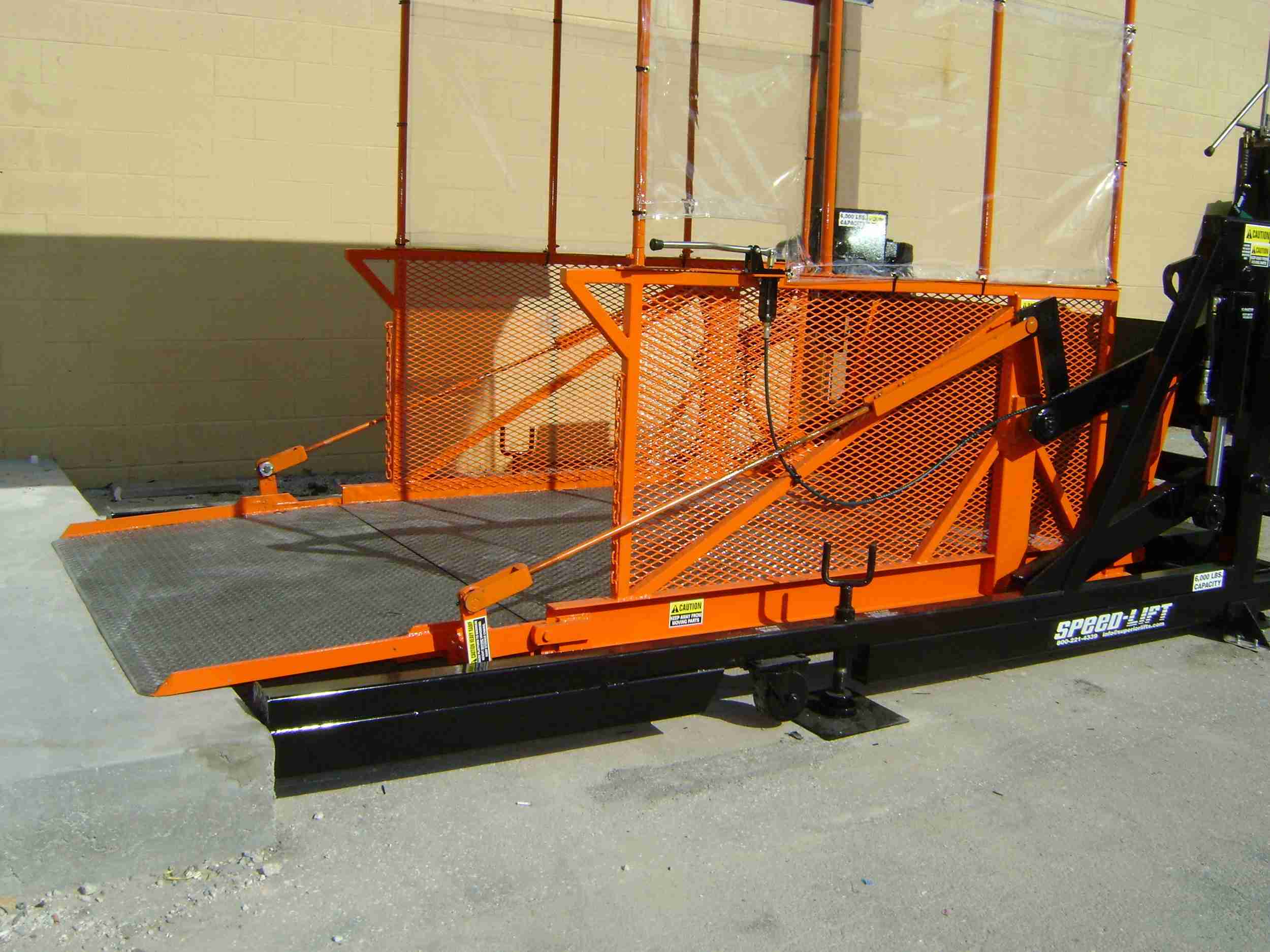

Raised Floor or Platform

-Platform Stops (PLTS) can be added to make the Speed-Lift stop at a predetermined height rather than all the way to the ground.

Weather Protection / Full Enclosures

-We offer a Weather Shield that covers the platform and a Full Enclosure with truck seal. Both are integrated with the Speed-Lift frame.

Extra Barriers-

-Side Frame Enclosures (SFE) and Accordion Folding Curtains (AFC) keep objects from going under the lift when it's in the raised position.

Platform Width Options

-Extra wide platforms (EWP) are available to accommodate side-by-side loads. We can build any size you require for your custom loading dock lift.

Inside Locations with Restricted Access

-For locations with restricted openings, our EZ-Install Speed-Lifts are shipped in two pieces and assembled and installed on-site by our technicians.

Too Little Space on Dock and Truck Approach

-Our Frame Beyond Dock (FBD) model is a creative solution if there's not enough space to put the whole lift either in front of the dock or on top of the dock.

Multiple Bays or Loading Points

-To service multiple points with one Speed-Lift, we have a Lateral Track Mobility (LTM) option where our lift can be easily pushed along a steel track.

Restricted Access or Odd Layout

-Our combination side-off/end-off (SOP/EOR) model allows for off-loading in two directions - note: the end-ramp will automatically fold up as the lift is raised.
